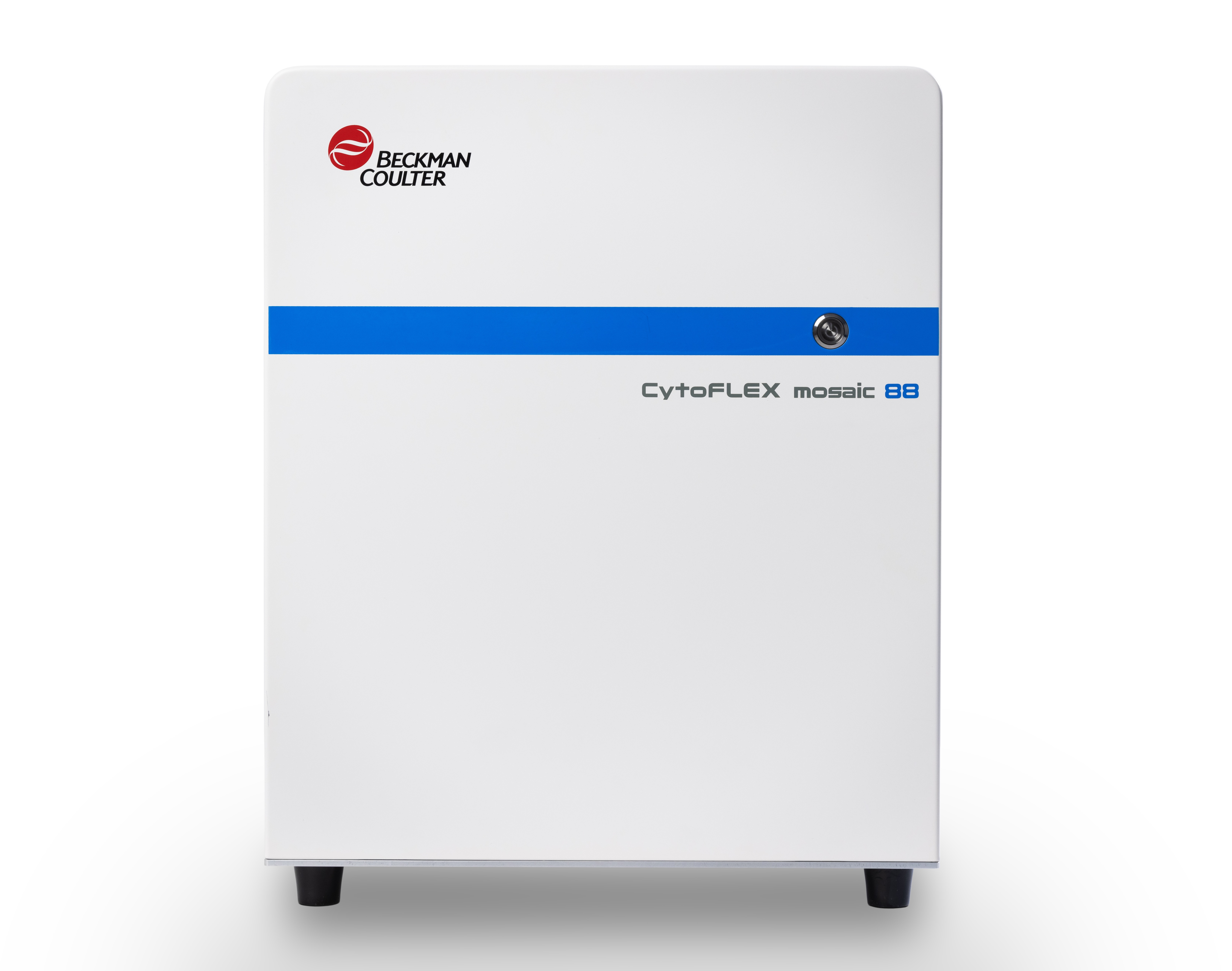

CytoFLEX mosaic 88 Spectral Detection Module U-V-B-Y-R (5 laser, CytoFLEX LX UV)
Product No:D19582
The CytoFLEX mosaic spectral detection module is the natural evolution of our CytoFLEX platform - a detection module that enables spectral capabilities using our CytoFLEX S* and CytoFLEX LX instruments. The CytoFLEX LX flow cytometer, when paired with the CytoFLEX mosaic 88 module, can function in either spectral or conventional modes. In conventional mode, its performance matches that of the CytoFLEX LX.
*Only valid for CytoFLEX S (V-B-Y-R) Series Flow Cytometer.
Resources + Tools
Product Specifications
| Configuration Before Upgrade | Sensitivity: FITC: <30 molecules of equivalent soluble fluorochrome (MESF-FITC), PE: <10 molecules of equivalent soluble fluorochrome (MESF-PE), APC: <25 molecules of equivalent soluble fluorochrome (MESF-APC), Fluorescence sensitivity is measured based on peak channel testing results, Scatter Resolution: Blue (488 nm) Side Scatter Resolution: <300 nm, Violet (405 nm) Side Scatter Resolution (VSSC): 80 nm relative to polystyrene particles, Scatter performance is optimized for resolving human lymphocytes, monocytes, and granulocytes as well as nanoparticles, Detectors: Avalanche Photodiode Detectors, Number of Detectors: 84 |
| Depth | 34.5 cm |
| Height | 53.5 cm |
| Open Text Additional Details | Sensitivity: FITC: <30 molecules of equivalent soluble fluorochrome (MESF-FITC), PE: <10 molecules of equivalent soluble fluorochrome (MESF-PE), APC: <25 molecules of equivalent soluble fluorochrome (MESF-APC), Fluorescence sensitivity is measured based on peak channel testing results, Scatter Resolution: Blue (488 nm) Side Scatter Resolution: <300 nm, Violet (405 nm) Side Scatter Resolution (VSSC): 80 nm relative to polystyrene particles, Scatter performance is optimized for resolving human lymphocytes, monocytes, and granulocytes as well as nanoparticles, Detectors: Avalanche Photodiode Detectors, Number of Detectors: 84 |
| Power Requirements | Voltage: 100–240 V Power: CytoFLEX mosaic 88 450VA |
| Regulatory Status | RUO |
| Signal Processing | Fully digital system with 7-decade data display |
| Software | CytExpert for Spectral |
| Weight | 33 kg |
| Width | 42.5 cm |
